Fabrication-Ready Booth Design: Fix the Handover Gap

A fabrication-ready booth design is a complete set of shop drawings a workshop can cut, assemble, and finish without interpretation. Most booth drawings fail this test at first handover, even with strong exhibition booth design development upstream. This blog will walk you through why drawings fail, the defects workshops flag back, and the review that catches them before fabrication.

What “Fabrication-Ready” Actually Means in Exhibition Booth Design

Fabrication-ready means the drawing set can be handed to the workshop foreman, cut and assembled without a single follow-up question. Every panel has dimensions. Every material has a name and grade. Every joint has a stated method. Every hardware item has a part number or specification. Every tolerance is written, not assumed. Print files are in the right colour space, resolution, and substrate-matched bleed.

This is different from concept design and different from design development. Concept design proves the idea. Design development resolves layout, key elevations, and the overall material palette. Fabrication-ready drawings translate all of that into a buildable specification. The transition is where most projects lose schedule and quality, because the designer thinks the job is done at design development and the workshop thinks the job is starting from a complete set.

A useful test is the buildability question: if every drawing sheet were handed to a competent workshop foreman with no project context, could they build it correctly? If the answer is no, the drawing set is not fabrication-ready.

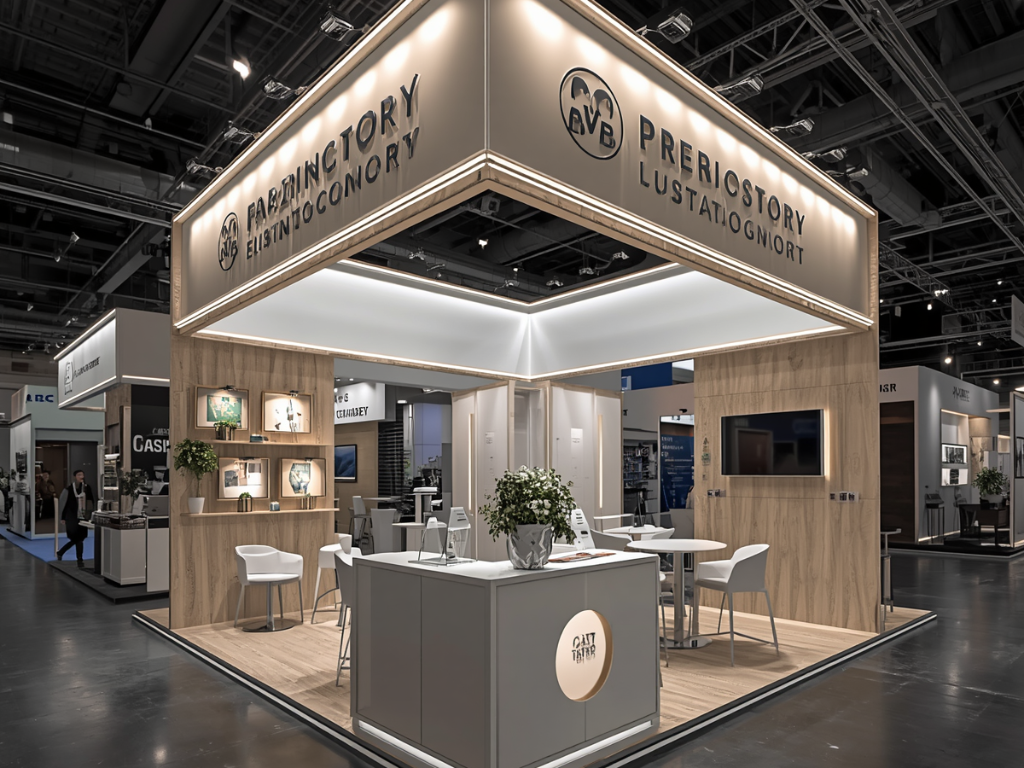

The Six Failure Patterns That Send Booth Drawings Back to the Designer

These are the recurring defects workshops in Singapore and across the region flag back, often in volume.

Missing or vague material call-outs

A designer’s moodboard says “matte black laminate.” The shop drawing says “matte black laminate.” Neither says which brand, which finish code, which substrate, or which edge treatment. The workshop has three options on the shelf, each of which reads slightly different under booth lighting. Without a call-out specifying the exact product, the workshop guesses, and the booth photography looks off-brand. The fix is to write product codes on every material on every sheet, with edge banding and substrate stated separately.

Undefined joinery and edge treatment

A 90-degree corner can be a butt joint, a mitre, a wrap, or a reveal. Each reads differently, costs different labour, and reacts differently to humidity and transport. When joinery is not specified, workshops default to whatever is fastest, which is usually a butt joint with caulked edges. Designers who want clean reveals need to draw the detail and call out the corner method. Standards published by the Architectural Woodwork Institute cover joinery grades that translate well as references for booth quality benchmarks.

Tolerance assumptions instead of specifications

A designer expects panel joints to align within 1 to 2 mm because the rendering looks crisp. The workshop, working without a tolerance call-out, assembles to ±5 mm because that is the industry default for non-precision work. The gap shows on bump-in day, and someone pays for the fix. Tolerances should be written on the drawings or in the title block. Frameworks like ISO 2768 for general dimensional tolerances give standard categories designers can reference instead of inventing values.

Print files in the wrong specification

Print files are where designer-fabricator handovers fail most quietly. A file delivered in RGB at 100 dpi on a 5 mm bleed, when the workshop expected CMYK at 1:1 print resolution with 10 mm bleed, will still print, but it will not match the rendering. The fix is to set substrate-specific print specs at project start: file format, colour space with a specified ICC profile, resolution at 1:1, bleed, and crop marks. Brands evaluating whether their contractor handles this should review the points in our vetting checklist for an exhibition stand builder before approving the design contract.

Hardware and connection schedules left blank

Booth panels connect with KD fittings, machine screws, brackets, magnetic catches, or proprietary system hardware. When the connection schedule is missing or vague, the workshop substitutes whatever is in stock. A panel meant to lift off with cam locks ends up screwed permanently with cross-head screws, becoming a tear-down problem. A clear hardware schedule with part numbers and quantities is the simplest single improvement to a drawing set.

Lighting and electrical shown in 3D but not dimensioned

Lighting fixtures, sockets, switches, and conduit runs often appear in the 3D rendering but not in the dimensioned plan. The workshop guesses positions during build, which then conflicts with the LEW-approved electrical schematic. This is one of the categories that delays end-of-build snagging because corrections involve cutting panels that are already finished.

The Buildability Review: Catching Problems Before the First Cut

A buildability review is a scheduled walk-through of the complete drawing set by the designer, the workshop foreman, and the project manager. It happens after design freeze and before any CNC programming starts.

The review takes 60 to 120 minutes for a typical 36 sqm custom booth. The foreman flags missing call-outs, impractical joints, and any element that cannot be machined on the workshop’s equipment. The designer responds with revisions or alternative details. The project manager tracks the resolution log.

In our experience, a properly run buildability review surfaces 8 to 20 issues per medium-complexity booth. Catching these before fabrication starts is roughly ten times cheaper than catching them onsite at bump-in. Yet many designer-only agencies skip this step because their workshop is a different company, and scheduling a joint review requires coordination they have not built into the workflow. Brands commissioning custom exhibition booth work in Singapore should ask explicitly whether a buildability review is in the standard project plan.

RFI Cycles and How to Read Them as a Project Health Metric

An RFI, or Request for Information, is the formal channel a workshop uses to ask the designer for clarification on an incomplete or unclear drawing. Each RFI has a clock attached: until the designer responds, that element cannot be cut or assembled.

A clean fabrication-ready set typically generates 0 to 3 RFIs during the build. A problem set generates 10 to 25. The volume is a health metric. If a project crosses double-digit RFIs in the first week of fabrication, the drawings were not ready and the schedule is at risk. Industry standard response time on an RFI is 24 hours. In practice, slow-responding designers push this to 48 to 72 hours, which destroys workshop scheduling.

A useful internal discipline is to track RFI volume per project and review trends across designers. Designers whose projects consistently generate low RFI counts produce fabrication-ready drawings. Those whose projects spike high need feedback. This sort of data also informs decisions about which contractor handles complex builds at larger activation scale, where RFI volume tends to scale with project complexity.

Drawing Revision Discipline: One Source of Truth

Every drawing should have a title block with sheet number, revision number, date, designer initials, and project name. When a drawing is superseded, the old version should be stamped void or archived, not left in the shared folder.

The single most common workshop error in exhibition projects is cutting from an obsolete drawing. A 15-minute walk through the production sheets before each shift, checking that every sheet on the workshop wall matches the latest revision in the shared drive, prevents this. The cost of cutting six panels to an old elevation and then having to remake them is far higher than the discipline cost of keeping revisions clean.

A shared drive with permission-controlled access works. Email attachments do not. WhatsApp threads do not. PDFs handed over physically without a version control header do not. The infrastructure exists; the discipline is what fails.

How a Single-Roof Workflow Eliminates Most Handover Problems

When the designer and the workshop sit in the same company, the handover stops being a transaction and becomes a conversation. The designer walks ten metres to the foreman’s bench and resolves an RFI in five minutes. The foreman flags a buildability concern at the daily walkthrough. Revisions propagate in hours, not days.

This is the structural reason agencies with owned workshops produce cleaner builds than design-only firms. The handover is not a wall, it is a hallway. A reference walk through a contractor’s completed exhibition project portfolio usually reveals whether this is the working model, or whether the contractor relies on external fabrication that requires formal handover packages.

Conclusion

Fabrication-ready booth design is a discipline, not a deliverable description. It separates designs that survive the workshop from designs that bleed schedule through RFIs, late revisions, and onsite fixes. The buildability review, tight revision control, and a workshop that sits inside the same company as the designer are the operational answers to a handover that consistently breaks elsewhere.

For brands planning custom exhibition builds in Singapore for 2026, get in touch with Right-Space to scope design, drawings, and fabrication under one workflow that closes the handover gap.

FAQs About Fabrication Ready Booth Design

What does “fabrication-ready” mean in booth design?

Fabrication-ready means the drawing set can be cut and assembled by a workshop without follow-up questions. Every panel is dimensioned, every material has a product code and grade, every joint method is specified, every hardware item has a part number, and tolerances are written rather than assumed. Print files are in the correct colour space, resolution, and substrate-matched bleed.

Why do booth drawings fail at the workshop?

The most common failure patterns are missing material call-outs, undefined joinery methods, tolerance assumptions instead of specifications, print files in the wrong format, blank hardware schedules, and lighting positions shown only in 3D. Each defect generates an RFI cycle that delays fabrication. Industry references like the Architectural Woodwork Institute publish joinery standards that designers can adopt to reduce ambiguity.

What is a buildability review and when does it happen?

A buildability review is a joint walk-through of the full drawing set by the designer, workshop foreman, and project manager. It happens after design freeze and before CNC programming. The review surfaces missing details, impractical joints, and elements the workshop cannot machine. A typical 36 sqm custom booth review takes 60 to 120 minutes and flags 8 to 20 issues.

How many RFIs are normal during booth fabrication?

A fabrication-ready drawing set typically generates 0 to 3 RFIs during the build. A problem set generates 10 to 25. RFI volume is a project health metric. If the count crosses double digits in the first week, the drawings were not workshop-ready and the schedule is at risk. Response times of 24 hours are the industry standard.

Does it matter whether the designer and workshop are in the same company?

Yes. When the designer and workshop sit under one roof, RFIs resolve in minutes rather than days, buildability reviews happen daily, and revision discipline benefits from a single shared drive. Split-vendor setups require formal handover packages and longer RFI cycles, which extends fabrication time and increases the chance of cutting from outdated drawings.
